3213470 | Phoenix Contact

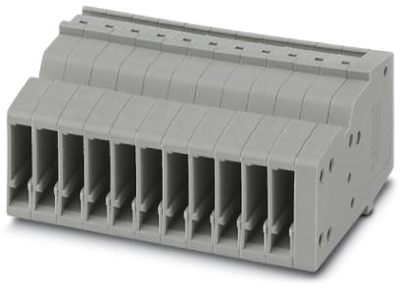

COMBI jack, push-in connection, 0.14-1.5 mm², 11 pole, 17.5 A, 6 kV, gray, 3213470
Unit Price (€ / pc.)
8.0563 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.06 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0563 €
10 pcs.
7.4137 €
50 pcs.
6.7473 €
100 pcs.
6.0690 €
*incl. VAT plus shipping costs
**Subject to prior sale
COMBI receptacle, 3213470, Phoenix Contact
COMBI receptacle, rated voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 1.5 mm², color: gray.
Features
- The Push-in technology COMBI couplings for self-assembly provide solutions that users can implement themselves
- For secure and space-saving accommodation of plug-in contacts in cable ducts and distributor shafts
- Tested for railway applications
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | COMBI-Kupplung | |
| AWG-Leiterquerschnitt | AWG 26 bis 14 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 38.5 mm | |
| Farbe | grau | |
| Höhe | 17.8 mm | |
| Länge | 27 mm | |
| Leiterquerschnitt | 0,14-1,5 mm² | |
| Nennstrom | 17.5 A | |
| Polzahl | 11-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
