3213603 | Phoenix Contact

Protective conductor terminal, push-in connection, 0.2-6.0 mm², 2 pole, 8 kV, yellow/green, 3213603

Order No.: 60P3642
EAN: 4055626084879
MPN:
3213603
PTS 4-PE
Series: PTS
3213603 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.3673 € *
Available: 49 pcs.
Available in 10 days: 581 pcs.
Leadtime: 1 Week **
Total Price:
4.37 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3673 €
10 pcs.
4.0222 €
50 pcs.
3.6533 €
100 pcs.
3.2963 €
*incl. VAT plus shipping costs
**Subject to prior sale

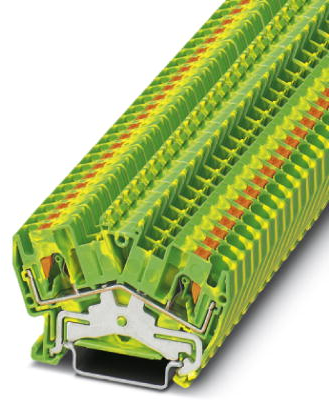

Ground modular terminal block, 3213603, Phoenix Contact

Ground modular terminal block, number of connections: 2, connection method: Push-in connection, 1 level, cross section: 0.2 mm²  - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • 2, 3, and 4-conductor terminal blocks with the same shape
  • Ground terminal blocks of the same shape are available
  • The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
  • Angled conductor entry for use in flat terminal boxes
  • Large space saving when used in concealed wiring systems
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 2
Ausführung Schutzleiter-Reihenklemme
AWG-Leiterquerschnitt AWG 24 bis 10
Bemessungsstoßspannung 8 kV
Breite 6.2 mm
Farbe gelb/grün
Höhe 43 mm
Länge 62.4 mm
Leiterquerschnitt 0,2-6,0 mm²
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
