3213604 | Phoenix Contact
Through terminal block, push-in connection, 0.2-6.0 mm², 3 pole, 32 A, 8 kV, gray, 3213604
Unit Price (€ / pc.)
1.9635 € *
Available: 0 pcs.
Available in 10 days: 2,042 pcs.
Leadtime: 1 Week **
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9635 €
10 pcs.
1.8088 €
50 pcs.
1.6422 €
100 pcs.
1.4875 €
*incl. VAT plus shipping costs
**Subject to prior sale

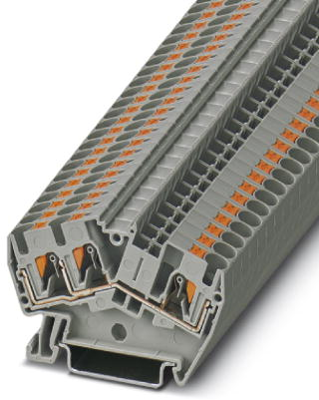

Feed-through terminal block, 3213604, Phoenix Contact
Feed-through terminal block, rated voltage: 800 V, nominal current: 32 A, connection method: Push-in connection, 1 level, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- 2, 3, and 4-conductor terminal blocks with the same shape
- Ground terminal blocks of the same shape are available
- The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
- Angled conductor entry for use in flat terminal boxes
- Large space saving when used in concealed wiring systems
Technical specifications
| Ausführung | Durchgangsklemme | |
| Anzahl der Klemmstellen | 3 | |
| Polzahl | 3-polig | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| AWG-Leiterquerschnitt | AWG 24 bis 10 | |
| Bemessungsstoßspannung | 8 kV | |
| Nennstrom | 32 A | |
| Bemessungsspannung | 800 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 62.4 mm | |
| Breite | 6.2 mm | |
| Höhe | 43 mm | |
| Anschluss | Push-in-Anschluss | |
| Farbe | grau |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
