3213700 | Phoenix Contact
COMBI jack, push-in connection, 0.14-1.5 mm², 1 pole, 17.5 A, 6 kV, gray, 3213700
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Available in 10 days: 1,384 pcs.
Leadtime: 1 Week **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9639 €
50 pcs.
0.8806 €
100 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale

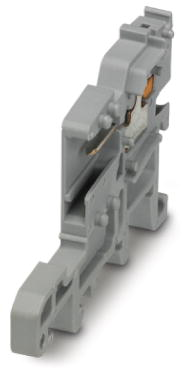

COMBI receptacle, 3213700, Phoenix Contact
COMBI receptacle, rated voltage: 500 V, nominal current: 17.5 A, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 1.5 mm², mounting type: NS 35/15, NS 35/7,5, color: gray.
Features
- The Push-in technology COMBI couplings for self-assembly provide solutions that users can implement themselves
- For secure and space-saving accommodation of plug-in contacts in cable ducts and distributor shafts
- Tested for railway applications
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | COMBI-Kupplung | |
| AWG-Leiterquerschnitt | AWG 26 bis 14 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 3.5 mm | |
| Farbe | grau | |
| Höhe | 27.1 mm | |
| Länge | 43 mm | |
| Leiterquerschnitt | 0,14-1,5 mm² | |
| Nennstrom | 17.5 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
