3213965 | Phoenix Contact
N-disconnect terminal, push-in connection, 0.2-6.0 mm², 24 A, 4 kV, gray, 3213965
Unit Price (€ / pc.)
2.9869 € *
Available: 0 pcs.
Available in 10 days: 8,992 pcs.
Leadtime: 1 Week **
Total Price:
2.99 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9869 €
10 pcs.
2.7489 €
50 pcs.
2.4990 €
100 pcs.
2.2491 €
*incl. VAT plus shipping costs
**Subject to prior sale

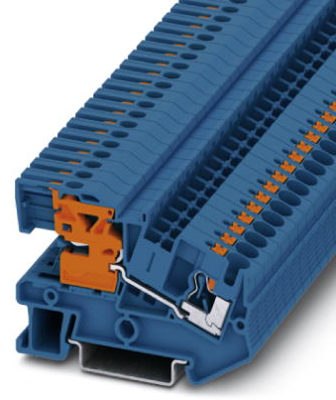

N disconnect terminal block, 3213965, Phoenix Contact
N disconnect terminal block, Assembly instructions: For secure fastening of the neutral busbar, supports must be set at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips., rated voltage: 250 V, nominal current: 32 A, Push-in connection, 1 level, Rated cross section: 4 mm², cross section: 0. 2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.
Features
- Fast and reliable neutral conductor disconnection
- Secure latching of slide in end positions
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | N-Trennklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 10 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 6.2 mm | |
| Farbe | grau | |
| Höhe | 44.8 mm | |
| Länge | 66 mm | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennstrom | 24 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
