3213966 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.5-10 mm², 8 kV, yellow/green, 3213966
Unit Price (€ / pc.)
4.7481 € *
Available: 0 pcs.
Available in 10 days: 12 pcs.
Leadtime: 1 Week **
Total Price:
4.75 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7481 €
10 pcs.
4.3673 €
50 pcs.
3.9746 €
100 pcs.
3.5819 €
*incl. VAT plus shipping costs
**Subject to prior sale

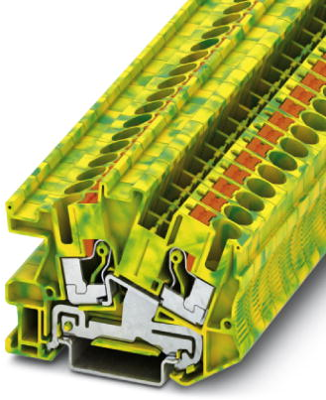

Installation ground terminal block, 3213966, Phoenix Contact
Installation ground terminal block, Push-in connection, cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- Same shape and pitch as the feed-through terminal blocks
- Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 8 | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 8.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 50 mm | |
| Länge | 66 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
