3213967 | Phoenix Contact

N-disconnect terminal, push-in connection, 0.5-10 mm², 24 A, 6 kV, blue, 3213967

Order No.: 60P3474
EAN: 4046356609357
MPN:
3213967
PTN 6
Series: PTN
3213967 Phoenix Contact Series Terminals

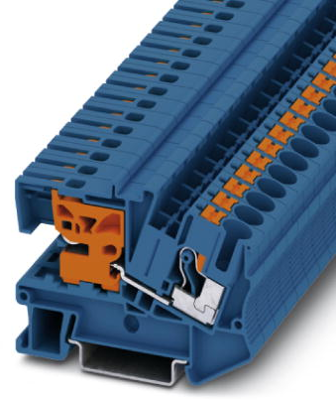

Image may differ
Unit Price (€ / pc.)
3.7961 € *
Available: 48 pcs.
Leadtime: 2 Weeks **
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7961 €
10 pcs.
3.4867 €
50 pcs.
3.1773 €
100 pcs.
2.8560 €
*incl. VAT plus shipping costs
**Subject to prior sale

N disconnect terminal block, 3213967, Phoenix Contact

N disconnect terminal block, Assembly instruction: In order to securely fix the neutral busbar in place, support brackets must be placed at the beginning and end of each terminal strip as well as every 20 cm on longer terminal strips. The corresponding support brackets can be found at phoenixcontact.net/products, rated voltage: 400 V, nominal current: 41 A, Push-in connection, 1 level, Rated cross section: 6 mm², cross section: 0.5 mm²  - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • Fast and reliable neutral conductor disconnection
  • Secure latching of slide in end positions
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 2
Ausführung N-Trennklemme
AWG-Leiterquerschnitt AWG 20 bis 8
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 8.2 mm
Farbe blau
Höhe 48.5 mm
Länge 66.3 mm
Leiterquerschnitt 0,5-10 mm²
Nennstrom 24 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
