3213973 | Phoenix Contact
Installation terminal block, push-in connection, 0.5-10 mm², 2 pole, 41 A, 6 kV, blue, 3213973
Unit Price (€ / pc.)
1.8802 € *
Available: 0 pcs.
Available in 10 days: 240 pcs.
Leadtime: 1 Week **
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.7255 €
50 pcs.
1.5708 €
100 pcs.
1.4161 €
*incl. VAT plus shipping costs
**Subject to prior sale

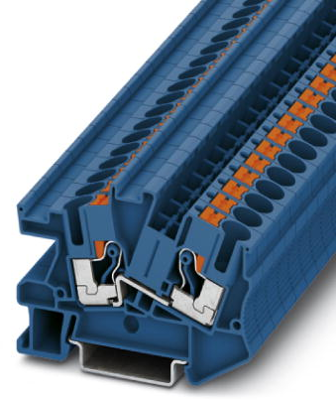

Installation terminal block, 3213973, Phoenix Contact
Installation terminal block, rated voltage: 800 V, nominal current: 41 A, Push-in connection, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.
Features
- Compatible with all installation terminal blocks
- Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
- As well as the testing facility in the function shaft, each terminal point has a test contact
- Compact design tailored to distribution boards
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Installationsetagenklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 8 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 8.2 mm | |
| Farbe | blau | |
| Höhe | 50 mm | |
| Länge | 66 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennstrom | 41 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
