3214029 | Phoenix Contact
Installation terminal block, push-in connection, 0.5-16 mm², 76 A, 6 kV, gray, 3214029
Unit Price (€ / pc.)
3.3558 € *
Available: 0 pcs.
Available in 10 days: 19 pcs.
Leadtime: 1 Week **
Total Price:
3.36 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3558 €
10 pcs.
3.0940 €
50 pcs.
2.8084 €
100 pcs.
2.5347 €
*incl. VAT plus shipping costs
**Subject to prior sale

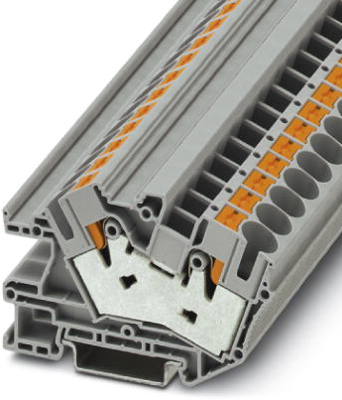

Installation terminal block, 3214029, Phoenix Contact
Installation terminal block, rated voltage: 500 V, nominal current: 76 A, Push-in connection, 1 level, Rated cross section: 16 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Compatible with installation terminal blocks
- Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
- As well as the testing facility in the function shaft, each terminal point has a test contact
- Compact design tailored to distribution boards
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 1 | |
| Version | installation terminal block | |
| AWG cross-section | AWG 24 to 4 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 10.2 mm | |
| Colour | gray | |
| Height | 51.1 mm | |
| Length | 77.7 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Rated current | 76 A | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
