3214050 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.2-6.0 mm², 28 A, 6 kV, gray, 3214050
Unit Price (€ / pc.)
3.8675 € *
Available: 0 pcs.
Available in 10 days: 2,092 pcs.
Leadtime: 1 Week **

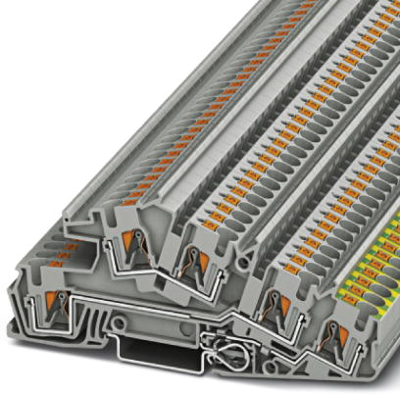

Installation ground terminal block, 3214050, Phoenix Contact
Installation ground terminal block, rated voltage: 400 V, nominal current: 28 A, Push-in connection, 1st, 2nd and 3rd level, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², Push-in connection, mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Compatible with Installation ground terminal blocks
- Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
- Double function shafts on all levels
- Compact design tailored to distribution boards
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 10 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6.2 mm | |
| Farbe | grau | |
| Höhe | 50.5 mm | |
| Länge | 114 mm | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennstrom | 28 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
