3214080 | Phoenix Contact

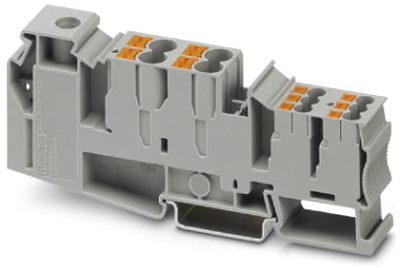

Potential collective terminal, 3214080, Phoenix Contact

Potential collective terminal, In the end application, the applicable safety regulations for overload and short-circuit protection on the connected conductors must be considered., rated voltage: 1000 V, nominal current: 105 A, connection method: Screw connection, 1st level connection left, cross section: 1.5 mm²  - 50 mm², Push-in connection, First level connection, interior, Rated cross section: 6 mm², cross section: 0.5 mm²  - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

• The compact design and front connection enable wiring in a confined space
• The terminal block base is ideal for use in building installation and machine building applications
• Easy and tool-free wiring of conductors with ferrules or solid conductors
• All terminal blocks provide an additional test connection
