3214081 | Phoenix Contact

Potential collecting terminal, push-in connection, 1.5-50 mm², 11 pole, 105 A, 8 kV, blue, 3214081

Order No.: 60P3801
EAN: 4055626170565
MPN:
3214081
PTU 35/4X6/6X2,5 BU
Series: PTU

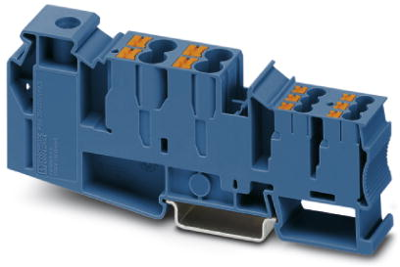

3214081 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
16.7433 € *
Available: 19 pcs.
Available in 10 days: 5,013 pcs.
Leadtime: 1 Week **
Total Price:
16.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.7433 €

Potential collective terminal, 3214081, Phoenix Contact

Potential collective terminal, In the end application, the applicable safety regulations for overload and short-circuit protection on the connected conductors must be considered., rated voltage: 1000 V, nominal current: 105 A, connection method: Screw connection, 1st level connection left, cross section: 1.5 mm²  - 50 mm², Push-in connection, First level connection, interior, Rated cross section: 6 mm², cross section: 0.5 mm²  - 10 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • The compact design and front connection enable wiring in a confined space
  • The terminal block base is ideal for use in building installation and machine building applications
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 11
Ausführung Potenzialsammelklemme
AWG-Leiterquerschnitt AWG 16 bis 1/0
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 16.3 mm
Farbe blau
Höhe 48.8 mm
Länge 110.4 mm
Leiterquerschnitt 1,5-50 mm²
Nennstrom 105 A
Polzahl 11-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
