3214301 | Phoenix Contact
Protective conductor terminal, screw connection, 0.14-4.0 mm², 19 A, 6 kV, gray, 3214301
Unit Price (€ / pc.)
6.7711 € *
Available: 0 pcs.
Available in 10 days: 6,365 pcs.
Leadtime: 1 Week **

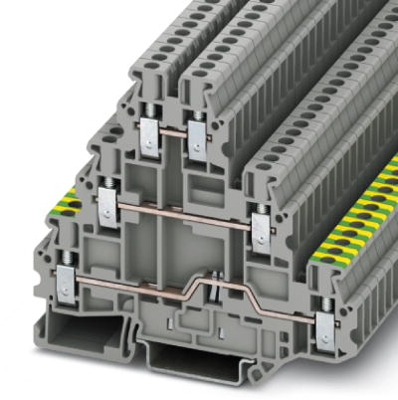

Ground modular terminal block, 3214301, Phoenix Contact
Ground modular terminal block, rated voltage: 500 V, nominal current: 19 A, connection method: Screw connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Since function shafts are provided on each level, all potential distribution tasks can be implemented quickly
- For a clear overview, each terminal point supports large-surface labeling
- A very high wiring density is achieved with the compact three-level terminal blocks
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 6 | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 77.5 mm | |
| Länge | 90 mm | |
| Leiterquerschnitt | 0,14-4,0 mm² | |
| Nennstrom | 19 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
