3214326 | Phoenix Contact

Lever disconnect terminal, screw connection, 0.14-4.0 mm², 28 A, 6 kV, black, 3214326

Order No.: 60P5698
EAN: 4055626076737
MPN:
3214326
UT 4-L/HEDI
Series: UT
3214326 Phoenix Contact Series Terminals

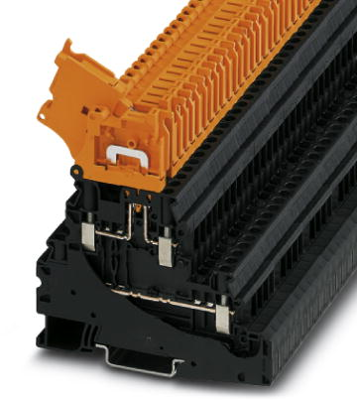

Image may differ
Unit Price (€ / pc.)
7.2709 € *
Available: 0 pcs.
Available in 10 days: 950 pcs.
Leadtime: 1 Week **
Total Price:
7.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.2709 €

Lever-type disconnect terminal block, 3214326, Phoenix Contact

Lever-type disconnect terminal block, rated voltage: 500 V, nominal current: 28 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm²  - 4 mm², connection method: Screw connection, Rated cross section: 1 mm², cross section: 0.14 mm²  - 4 mm², mounting: NS 35/7,5, NS 35/15, color: black/orange

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Hebeltrennklemme
AWG-Leiterquerschnitt AWG 26 bis 10
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe schwarz
Höhe 88.9 mm
Länge 92.7 mm
Leiterquerschnitt 0,14-4,0 mm²
Nennstrom 28 A
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
