3214360 | Phoenix Contact

Protective conductor terminal, screw connection, 0.14-6.0 mm², 5 pole, 30 A, 6 kV, gray, 3214360

Order No.: 60P5745
EAN: 4046356895682
MPN:
3214360
UT 4-PE/L/L
Series: UT
3214360 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
11.1979 € *
Available: 0 pcs.
Available in 10 days: 1,066 pcs.
Leadtime: 1 Week **
Total Price:
559.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
11.1979 €

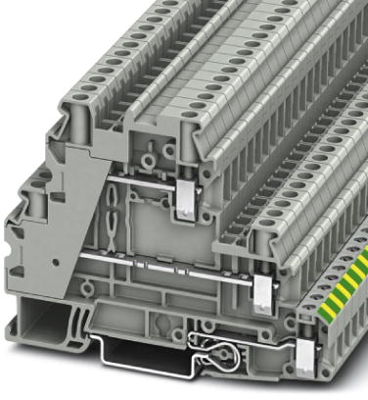

Ground modular terminal block, 3214360, Phoenix Contact

Ground modular terminal block, rated voltage: 500 V, nominal current: 30 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm²  - 6 mm², Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm²  - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 5
Ausführung Schutzleiter-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 10
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6.2 mm
Farbe grau
Höhe 61.7 mm
Länge 92.7 mm
Leiterquerschnitt 0,14-6,0 mm²
Nennstrom 30 A
Polzahl 5-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
