3214365 | Phoenix Contact
Protective conductor terminal, screw connection, 0.14-6.0 mm², 28 A, 6 kV, gray, 3214365
Unit Price (€ / pc.)
10.1626 € *
Available: 0 pcs.
Available in 10 days: 5,830 pcs.
Leadtime: 1 Week **

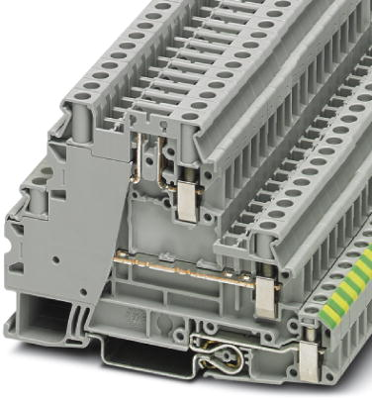

Ground modular terminal block, 3214365, Phoenix Contact
Ground modular terminal block, rated voltage: 500 V, nominal current: 28 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 10 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6.2 mm | |
| Farbe | grau | |
| Höhe | 61.7 mm | |
| Länge | 92.7 mm | |
| Leiterquerschnitt | 0,14-6,0 mm² | |
| Nennstrom | 28 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
