3214602 | Phoenix Contact

Protective conductor terminal, push-in connection, 0.14-1.5 mm², 3 pole, 6 kV, yellow/green, 3214602

Order No.: 60P3624
EAN: 4046356616348
MPN:
3214602
PTS 1,5/S-TWIN-PE
Series: PTS
Phoenix Contact
3214602 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.5577 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.56 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5577 €
10 pcs.
4.1888 €
50 pcs.
3.8199 €
100 pcs.
3.4391 €
*incl. VAT plus shipping costs
**Subject to prior sale

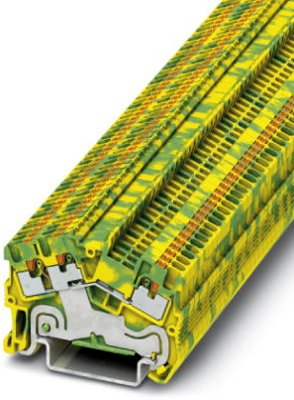

Ground modular terminal block, 3214602, Phoenix Contact

Ground modular terminal block, number of connections: 3, connection method: Push-in connection, 1 level, cross section: 0.14 mm²  - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • 2, 3, and 4-conductor terminal blocks with the same shape
  • Ground terminal blocks of the same shape are available
  • The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
  • Angled conductor entry for use in flat terminal boxes
  • Large space saving when used in concealed wiring systems
Technical specifications
Connection push-in connection
Number of terminals 3
Version protective conductor terminal
AWG cross-section AWG 26 to 14
Rated surge voltage 6 kV
Width 3.5 mm
Colour yellow/green
Height 38.5 mm
Length 50.7 mm
Cable cross-section 0.14-1.5 mm²
Pin number 3 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
