3214644 | Phoenix Contact
Protective conductor terminal, push-in connection, 0.14-1.5 mm², 4 pole, 6 kV, yellow/green, 3214644
Unit Price (€ / pc.)
5.0218 € *
Available: 0 pcs.
Available in 10 days: 250 pcs.
Leadtime: 2 Weeks **
Total Price:
5.02 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0218 €
10 pcs.
4.6291 €
50 pcs.
4.2126 €
100 pcs.
3.7842 €
*incl. VAT plus shipping costs
**Subject to prior sale

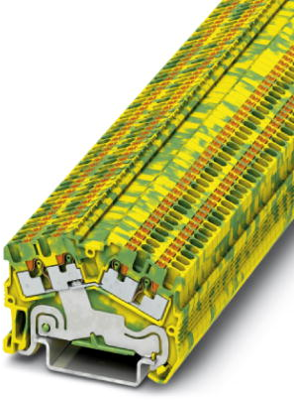

Ground modular terminal block, 3214644, Phoenix Contact
Ground modular terminal block, number of connections: 4, connection method: Push-in connection, 1 level, cross section: 0.14 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- 2, 3, and 4-conductor terminal blocks with the same shape
- Ground terminal blocks of the same shape are available
- The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
- Angled conductor entry for use in flat terminal boxes
- Large space saving when used in concealed wiring systems
Technical specifications
| Connection | Push-in-Anschluss | |
| Number of terminals | 4 | |
| Version | Schutzleiter-Reihenklemme | |
| AWG cross-section | AWG 26 bis 14 | |
| Rated surge voltage | 6 kV | |
| Width | 3.5 mm | |
| Colour | gelb/grün | |
| Height | 38.5 mm | |
| Length | 50.7 mm | |
| Cable cross-section | 0,14-1,5 mm² | |
| Pin number | 4-polig | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
