3214673 | Phoenix Contact

Protective conductor double level terminal, push-in connection, 0.14-1.5 mm², 6 kV, yellow/green, 3214673

Order No.: 60P3743
EAN: 4046356616157
MPN:
3214673
PTTBS 1,5/S-PE
Series: PTTBS
3214673 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.8671 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
4.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.8671 €

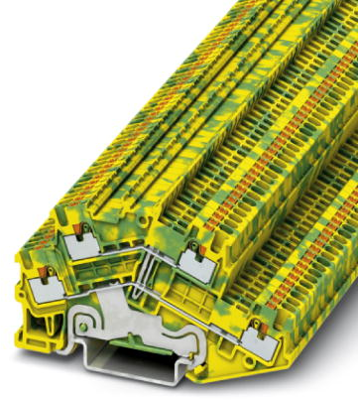

Protective conductor double-level terminal block, 3214673, Phoenix Contact

Protective conductor double-level terminal block, connection method: Push-in connection, 1st and 2nd level, cross section: 0.14 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.

Features

  • The compact design and front connection enable wiring in a confined space
  • Easy and tool-free wiring of conductors with ferrules or solid conductors
  • All terminal blocks provide an additional test connection
Technical specifications
Anschluss Push-in-Anschluss
Ausführung Schutzleiter-Doppelstockklemme
AWG-Leiterquerschnitt AWG 26 bis 14
Bemessungsstoßspannung 6 kV
Breite 3.5 mm
Farbe gelb/grün
Höhe 48.2 mm
Länge 78.8 mm
Leiterquerschnitt 0,14-1,5 mm²
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
