3214709 | Phoenix Contact

Through terminal block, push-in connection, 0.14-1.5 mm², 1 pole, 17.5 A, 6 kV, gray, 3214709

Order No.: 60P3621
EAN: 4046356625425
MPN:
3214709
PTS 1,5/S-TWIN/1P
Series: PTS
Phoenix Contact

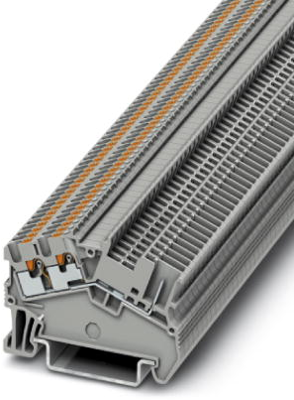

3214709 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
1.3566 € *
Available: 50 pcs.
Leadtime: 4 Weeks **
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3566 €
10 pcs.
1.2495 €
50 pcs.
1.1424 €
100 pcs.
1.0234 €
*incl. VAT plus shipping costs
**Subject to prior sale

Feed-through terminal block, 3214709, Phoenix Contact

Feed-through terminal block, The max. load current must not be exceeded by the total current of all connected conductors. Current and voltage are determined by the plug used., Nominal voltage: 500 V, Nominal current: 17.5 A, Connection method: Push-in / plug connection, 1 level, Rated cross section: 1.5 mm², Cross section: 0.14 mm² - 1.5 mm², Mounting type: NS 35/7,5, NS 35/15, Color: gray

Technical specifications
Connection push-in connection
Number of terminals 3
Version through terminal block
AWG cross-section AWG 26 to 14
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 3.5 mm
Colour gray
Height 37 mm
Length 50.7 mm
Cable cross-section 0.14-1.5 mm²
Rated current 17.5 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
