3244601 | Phoenix Contact
High current terminal, screw connection, 16-95 mm², 1 pole, 192 A, 8 kV, blue, 3244601
Unit Price (€ / pc.)
26.6322 € *
Available: 0 pcs.
Available in 10 days: 2,543 pcs.
Leadtime: 1 Week **

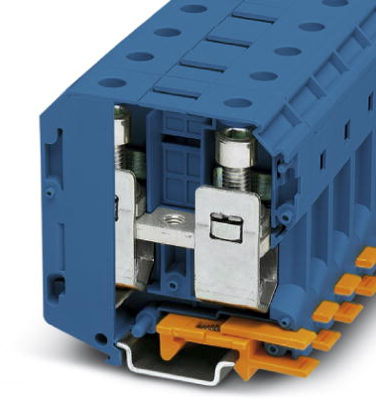

High current terminal block, 3244601, Phoenix Contact
High-current terminal block, rated voltage: 1000 V, nominal current: 192 A, connection method: Screw connection, Rated cross section: 70 mm², cross section: 16 mm² - 95 mm², mounting type: NS 35/7,5, NS 35/15, NS 35/15-2,3, NS 32, color: blue.
Features
- Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
- Low contact resistance of the contact surface due to ribbing
- Screw locking by means of spring-loaded elements in the clamping part
- Tested for railway applications
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Hochstromklemme | |
| AWG-Leiterquerschnitt | AWG 4 bis 3/0 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 20.3 mm | |
| Farbe | blau | |
| Höhe | 78.3 mm | |
| Länge | 70.5 mm | |
| Leiterquerschnitt | 16-95 mm² | |
| Nennstrom | 192 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
