3247035 | Phoenix Contact
High current terminal, screw connection, 35-150 mm², 1 pole, 309 A, 8 kV, gray, 3247035
Unit Price (€ / pc.)
40.6147 € *
Available: 1 pcs.
Available in 10 days: 81 pcs.
Leadtime: 1 Week **
Total Price:
40.61 € *
Price list
Quantity
Price per unit*
1 pcs.
40.6147 €
10 pcs.
38.1752 €
25 pcs.
35.5096 €
50 pcs.
32.6655 €
*incl. VAT plus shipping costs
**Subject to prior sale

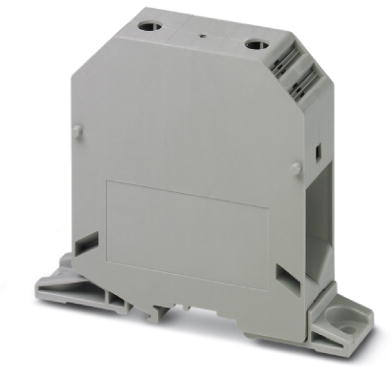

High current terminal block, 3247035, Phoenix Contact
High-current terminal block, rated voltage: 1000 V, nominal current: 309 A, connection method: Screw connection, Rated cross section: 150 mm², cross section: 35 mm² - 150 mm², mounting type: direct screw connection, color: gray.
Features
- Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
- Low contact resistance of the contact surface due to ribbing
- Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | high current terminal | |
| AWG cross-section | AWG 2/0 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 31 mm | |
| Colour | gray | |
| Height | 111 mm | |
| Length | 136.1 mm | |
| Cable cross-section | 35-150 mm² | |
| Rated current | 309 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
