3247052 | Phoenix Contact

High current terminal, screw connection, 16-70 mm², 1 pole, 150 A, 8 kV, yellow/black, 3247052

Order No.: 60P5305
EAN: 4046356707183
MPN:
3247052
UKH 50-FE
Series: UKH

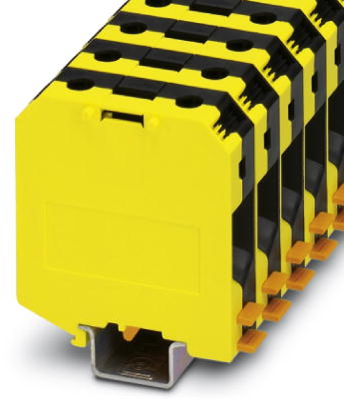

3247052 Phoenix Contact Series Terminals Image 1
3247052 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
19.2066 € *
Available: 0 pcs.
Available in 10 days: 47 pcs.
Leadtime: 1 Week **
Total Price:
19.21 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2066 €
10 pcs.
17.8619 €
25 pcs.
16.2554 €
50 pcs.
14.6251 €
*incl. VAT plus shipping costs
**Subject to prior sale

High current terminal block, 3247052, Phoenix Contact

High-current terminal block, rated voltage: 1000 V, nominal current: 150 A, connection method: Screw connection, Rated cross section: 50 mm², cross section: 16 mm²  - 70 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, NS 35/15-2,3, color: black/yellow.

Features

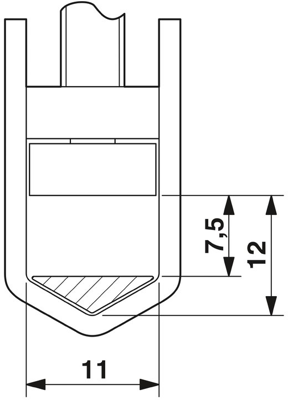

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Low contact resistance of the contact surface due to ribbing
  • Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Hochstromklemme
AWG-Leiterquerschnitt AWG 6 bis 2/0
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 20 mm
Farbe gelb/schwarz
Höhe 81 mm
Länge 75.5 mm
Leiterquerschnitt 16-70 mm²
Nennstrom 150 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland IN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
