3247056 | Phoenix Contact
High current terminal, screw connection, 70-240 mm², 1 pole, 415 A, 8 kV, yellow/black, 3247056
Unit Price (€ / pc.)
53.5619 € *
Available: 0 pcs.
Available in 10 days: 540 pcs.
Leadtime: 1 Week **

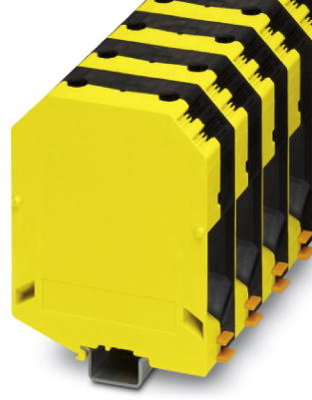

High current terminal block, 3247056, Phoenix Contact
High-current terminal block, rated voltage: 1000 V, nominal current: 415 A, connection method: Screw connection, Rated cross section: 240 mm², cross section: 70 mm² - 240 mm², mounting type: NS 35/15, NS 32, color: black/yellow.
Features

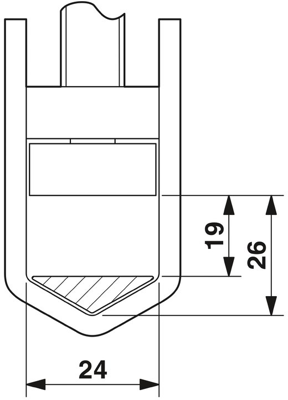

- Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
- Low contact resistance of the contact surface due to ribbing
- Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | high current terminal | |
| AWG cross-section | AWG 2/0 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 36 mm | |
| Colour | yellow/black | |
| Height | 129 mm | |
| Length | 100 mm | |
| Cable cross-section | 70-240 mm² | |
| Rated current | 415 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
