3247063 | Phoenix Contact

High current terminal, screw connection, 16-70 mm², 1 pole, 192 A, 8 kV, blue, 3247063

Order No.: 60P5312
EAN: 4046356733311
MPN:
3247063
UKH 70-F BU
Series: UKH

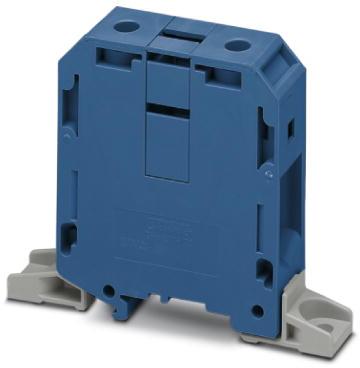

3247063 Phoenix Contact Series Terminals Image 1

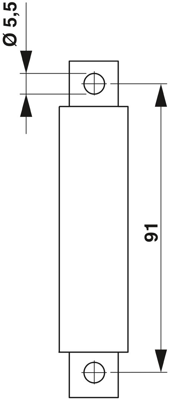

3247063 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
24.1451 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
24.15 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
24.1451 €

High current terminal block, 3247063, Phoenix Contact

High-current terminal block, rated voltage: 1000 V, nominal current: 192 A, connection method: Screw connection, Rated cross section: 70 mm², cross section: 16 mm²  - 70 mm², mounting type: direct screw connection, color: blue.

Features

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Low contact resistance of the contact surface due to ribbing
  • Screw locking by means of spring-loaded elements in the clamping part
  • Tested for railway applications
Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Hochstromklemme
AWG-Leiterquerschnitt AWG 4 bis 2/0
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 20.3 mm
Farbe blau
Höhe 80 mm
Länge 70.5 mm
Leiterquerschnitt 16-70 mm²
Nennstrom 192 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
