3247064 | Phoenix Contact
High current terminal, screw connection, 25-95 mm², 1 pole, 232 A, 8 kV, blue, 3247064
Unit Price (€ / pc.)
24.0975 € *
Available: 0 pcs.
Available in 10 days: 20 pcs.
Leadtime: 1 Week **

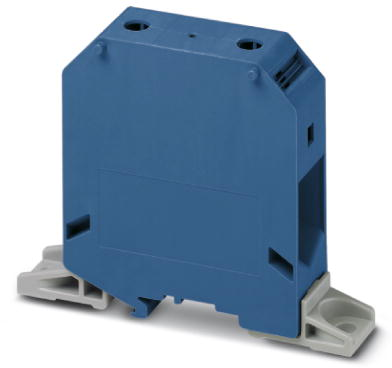

High current terminal block, 3247064, Phoenix Contact
High-current terminal block, rated voltage: 1000 V, nominal current: 232 A, connection method: Screw connection, Rated cross section: 95 mm², cross section: 25 mm² - 95 mm², mounting type: direct screw connection, color: blue.
Features

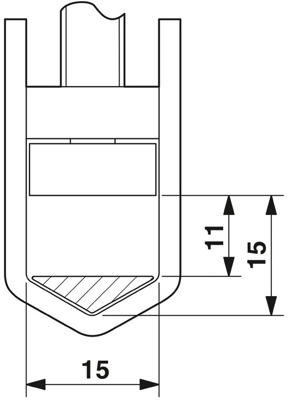

- Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
- Low contact resistance of the contact surface due to ribbing
- Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | high current terminal | |
| AWG cross-section | AWG 4 to 3/0 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 25 mm | |
| Colour | blue | |
| Height | 90 mm | |
| Length | 83 mm | |
| Cable cross-section | 25-95 mm² | |
| Rated current | 232 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
