3248100 | Phoenix Contact

2 wire mini through terminal, push-in connection, 0.14-1.5 mm², 1 pole, 17.5 A, 6 kV, gray, 3248100

Order No.: 64P2296
EAN: 4055626678481
MPN:
3248100
MPT 1,5/S
Series: MPT
Phoenix Contact

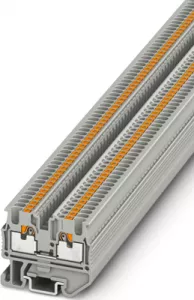

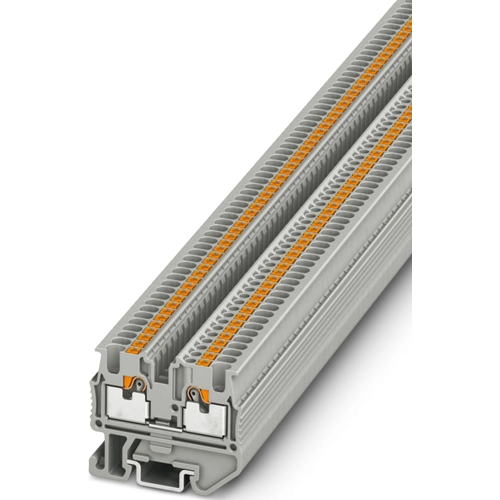

3248100 Phoenix Contact Series Terminals Image 1

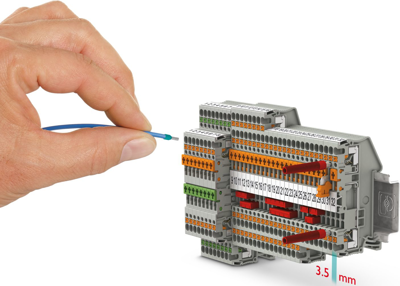

3248100 Phoenix Contact Series Terminals Image 2

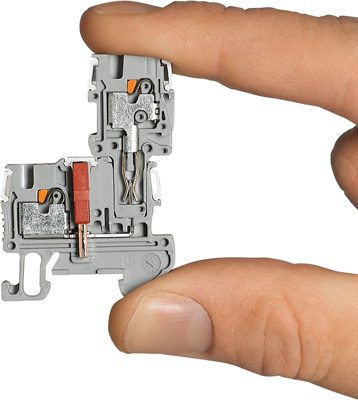

3248100 Phoenix Contact Series Terminals Image 3
Image may differ
Unit Price (€ / pc.)
0.8925 € *
Available: 0 pcs.
Available in 10 days: 22 pcs.
Leadtime: 1 Week **
Total Price:
0.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.8925 €

Mini terminal block, 3248100, Phoenix Contact

Mini feed-through terminal block, nominal voltage: 500 V, nominal current: 17.5 A, number of connections: 2, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.14 mm²-1.5 mm², mounting type: NS 15, color: gray.

Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 2
Ausführung Minidurchgangsklemme
AWG-Leiterquerschnitt AWG 26 bis 16
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 3.5 mm
Farbe grau
Höhe 28.1 mm
Länge 33.55 mm
Leiterquerschnitt 0,14-1,5 mm²
Nennstrom 17.5 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
