3260103 | Phoenix Contact
High current terminal, plug-in connection, 25-95 mm², 1 pole, 232 A, 8 kV, blue, 3260103
Unit Price (€ / pc.)
29.4406 € *
Available: 0 pcs.
Available in 10 days: 111 pcs.
Leadtime: 1 Week **
Total Price:
29.44 € *
Price list
Quantity
Price per unit*
1 pcs.
29.4406 €
10 pcs.
27.0844 €
50 pcs.
23.8238 €
*incl. VAT plus shipping costs
**Subject to prior sale

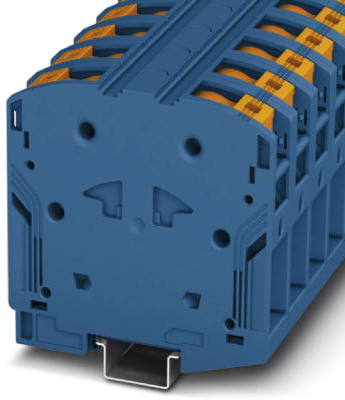

High current terminal block, 3260103, Phoenix Contact
High-current terminal block, rated voltage: 1000 V, nominal current: 232 A, connection method: Power-Turn connection, 1 level, cross section: 25 mm² - 95 mm², mounting type: NS 35/15, color: blue.
Features
- The compact design enables wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- In addition to using the existing test connection, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
- Quick and easy connection is now also possible for large conductors with the high-current terminal block
- Tested for railway applications
Technical specifications
| Anschluss | Steckanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Hochstromklemme | |
| AWG-Leiterquerschnitt | AWG 4 bis 4/0 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 25 mm | |
| Farbe | blau | |
| Höhe | 108.7 mm | |
| Länge | 105.5 mm | |
| Leiterquerschnitt | 25-95 mm² | |
| Nennstrom | 232 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
