3260133 | Phoenix Contact
High current terminal, plug-in connection, 25-95 mm², 1 pole, 232 A, 8 kV, gray, 3260133
Unit Price (€ / pc.)
30.6187 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
30.62 € *
Price list
Quantity
Price per unit*
1 pcs.
30.6187 €
10 pcs.
28.1673 €
50 pcs.
24.7758 €
*incl. VAT plus shipping costs
**Subject to prior sale

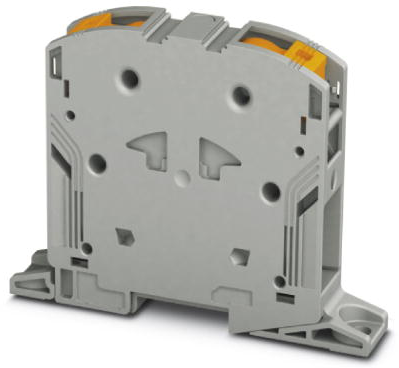

High current terminal block, 3260133, Phoenix Contact
High-current terminal block, rated voltage: 1000 V, nominal current: 232 A, connection method: Power-Turn connection, 1 level, cross section: 25 mm² - 95 mm², mounting type: direct screw connection, color: gray.
Features
- The compact design enables wiring in a confined space
- Easy and tool-free wiring of conductors with ferrules or solid conductors
- In addition to using the existing test connection, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
- Quick and easy connection is now also possible for large conductors with the high-current terminal block
- Tested for railway applications
Technical specifications
| Version | Hochstromklemme | |
| Number of terminals | 2 | |
| Pin number | 1-polig | |
| Cable cross-section | 25-95 mm² | |
| AWG cross-section | AWG 4 bis 4/0 | |
| Rated surge voltage | 8 kV | |
| Rated current | 232 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |

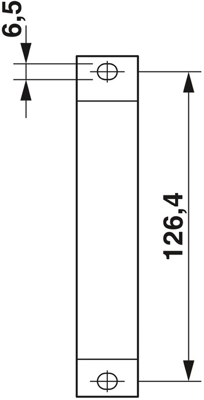

| Length | 139.1 mm | |
| Width | 25 mm | |
| Height | 99.8 mm | |
| Connection | Steckanschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
