3260163 | Phoenix Contact
High current terminal, plug-in connection, 25-95 mm², 1 pole, 232 A, 8 kV, gray, 3260163
Unit Price (€ / pc.)
30.3926 € *
Available: 3 pcs.
Available in 10 days: 77 pcs.
Leadtime: 2 Weeks **
Total Price:
30.39 € *
Price list
Quantity
Price per unit*
1 pcs.
30.3926 €
10 pcs.
28.2625 €
25 pcs.
26.0015 €
50 pcs.
23.6572 €
*incl. VAT plus shipping costs
**Subject to prior sale

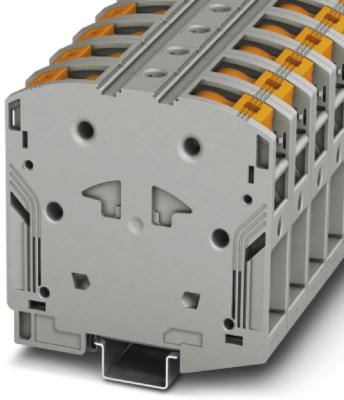

High-current terminal block, 3260163, Phoenix Contact
High-current terminal block, with test socket, Nominal voltage: 1000 V, Nominal current: 232 A, Connection method: PowerTurn connection, 1 level, Cross section: 25 mm² - 95 mm², Mounting type: NS 35/15, Color: gray
Features
- Quick and easy connection is now also possible for large conductors with the high-current terminal block
- In addition to using the existing test connection, pick-off terminal blocks can be connected, each of which can also accommodate two test cables
- The compact design enables wiring in a confined space
- The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
- Tested for railway applications
Technical specifications
| Connection | plug-in connection | |
| Number of terminals | 2 | |
| Version | high current terminal | |
| AWG cross-section | AWG 4 to 4/0 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 25 mm | |
| Colour | gray | |
| Height | 108.7 mm | |
| Length | 105.5 mm | |
| Cable cross-section | 25-95 mm² | |
| Rated current | 232 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
