3270117 | Phoenix Contact
Shunting distributor, push-in connection, 0.14-2.5 mm², 2 pole, 10 A, 6 kV, gray, 3270117
Unit Price (€ / pc.)
11.2931 € *
Available: 0 pcs.
Available in 10 days: 2,400 pcs.
Leadtime: 1 Week **
Total Price:
11.29 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2931 €
10 pcs.
10.3887 €
50 pcs.
9.4486 €
100 pcs.
8.5085 €
*incl. VAT plus shipping costs
**Subject to prior sale

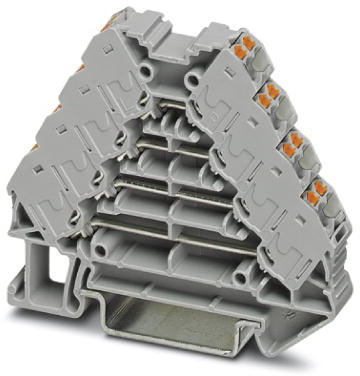

Marshalling panel, 3270117, Phoenix Contact
Marshalling panel, rated voltage: 250 V, nominal current: 10 A, connection method: Push-in connection, 1st, 2nd, 3rd and 4th level, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 2.5 mm², mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: gray.
Features
- High contact quality thanks to push-in technology as a replacement for Wire-Wrap, TERMI-POINT
- Individual color assignment of cable and terminal point to ensure error-free, safe operation
- Tool-free wiring in a confined space thanks to compact size
- The 2.3 mm test connection enables testing between the conductors with test pins commonly used in the industry
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 16 | |
| Ausführung | Rangierverteiler | |
| AWG-Leiterquerschnitt | AWG 26 bis 14 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 8.3 mm | |
| Farbe | grau | |
| Höhe | 55.5 mm | |
| Länge | 64 mm | |
| Leiterquerschnitt | 0,14-2,5 mm² | |
| Nennstrom | 10 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
