3270121 | Phoenix Contact

Patch panel, push-in connection, 0.14-2.5 mm², 2 pole, 10 A, 6 kV, gray, 3270121

Order No.: 60P3564
EAN: 4046356796125
MPN:
3270121
PTRV 4 /RD
Series: PTRV
Phoenix Contact
3270121 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
11.2931 € *
Available: 0 pcs.
Available in 10 days: 371 pcs.
Leadtime: 2 Weeks **
Total Price:
11.29 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2931 €
10 pcs.
10.3887 €
50 pcs.
9.4486 €
100 pcs.
8.5085 €
*incl. VAT plus shipping costs
**Subject to prior sale

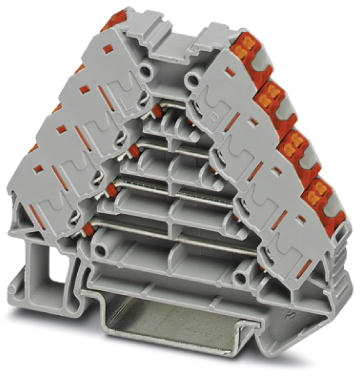

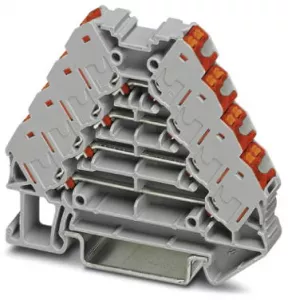

Marshalling panel, 3270121, Phoenix Contact

Marshalling panel, rated voltage: 250 V, nominal current: 10 A, connection method: Push-in connection, 1st, 2nd, 3rd and 4th level, Rated cross section: 1.5 mm², cross section: 0.14 mm²  -  2.5 mm², mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: red.

Features

  • High contact quality thanks to push-in technology as a replacement for Wire-Wrap, TERMI-POINT
  • Individual color assignment of cable and terminal point to ensure error-free, safe operation
  • Tool-free wiring in a confined space thanks to compact size
  • The 2.3 mm test connection enables testing between the conductors with test pins commonly used in the industry
Technical specifications
Connection push-in connection
Number of terminals 16
Version patch panel
AWG cross-section AWG 26 to 14
Rated Voltage 250 V
Rated surge voltage 6 kV
Width 8.3 mm
Colour gray
Height 55.5 mm
Length 64 mm
Cable cross-section 0.14-2.5 mm²
Rated current 10 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
