3270125 | Phoenix Contact
Potential distributor, push-in connection, 0.14-2.5 mm², 2 pole, 17.5 A, 4 kV, black/gray, 3270125
Unit Price (€ / pc.)
12.0666 € *
Available: 0 pcs.
Available in 10 days: 3,494 pcs.
Leadtime: 2 Weeks **
Total Price:
12.07 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0666 €
10 pcs.
11.1027 €
50 pcs.
10.1031 €
100 pcs.
9.0916 €
*incl. VAT plus shipping costs
**Subject to prior sale

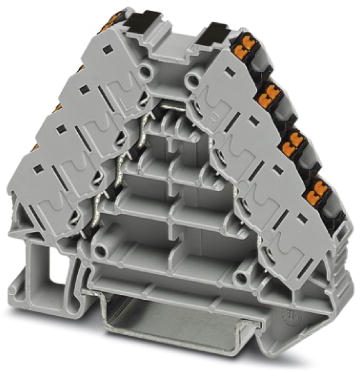

Potential distributor, 3270125, Phoenix Contact
Potential distributor, rated voltage: 250 V, nominal current: 17.5 A, connection method: Push-in connection, 1st, 2nd, 3rd and 4th level, Rated cross section: 1.5 mm², cross section: 0.14 mm.
Features
- High contact quality thanks to push-in technology as a replacement for Wire-Wrap, TERMI-POINT
- Potential distributor for distributing potentials up to 17.5 A
- Tool-free wiring in a confined space thanks to compact size
- The 2.3 mm test connection enables testing between the conductors with test pins commonly used in the industry
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 16 | |
| Version | potential distributor | |
| AWG cross-section | AWG 26 to 14 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Width | 8.3 mm | |
| Colour | black/gray | |
| Height | 55.5 mm | |
| Length | 64 mm | |
| Cable cross-section | 0.14-2.5 mm² | |
| Rated current | 17.5 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
