3270138 | Phoenix Contact
Potential distributor, push-in connection, 0.14-2.5 mm², 2 pole, 24 A, 4 kV, gray, 3270138
Unit Price (€ / pc.)
15.1844 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
15.18 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1844 €
10 pcs.
13.9706 €
50 pcs.
12.7092 €
100 pcs.
11.4359 €
*incl. VAT plus shipping costs
**Subject to prior sale

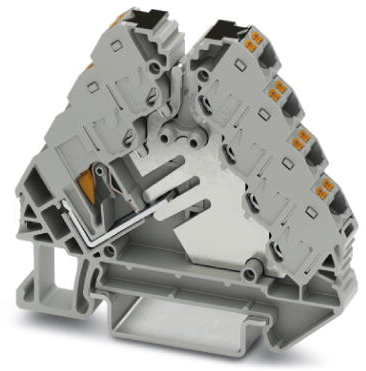

Potential distributor, 3270138, Phoenix Contact
Potential distributor, with option to supply up to 6 mm², rated voltage: 250 V, nominal current: 17.5 A, connection method: Push-in connection, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 2.5 mm², Feed-in stage, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: gray, color of connection elements: gray.
Features
- Bridgeable potential distributor with option to supply up to 6 mm²
- High contact quality thanks to push-in technology as a replacement for Wire-Wrap, TERMI-POINT
- Tool-free wiring in a confined space thanks to compact size
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Ausführung | Potenzialverteiler | |
| AWG-Leiterquerschnitt | AWG 26 bis 14 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 8.3 mm | |
| Farbe | grau | |
| Höhe | 55.5 mm | |
| Länge | 64 mm | |
| Leiterquerschnitt | 0,14-2,5 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
