3273902 | Phoenix Contact

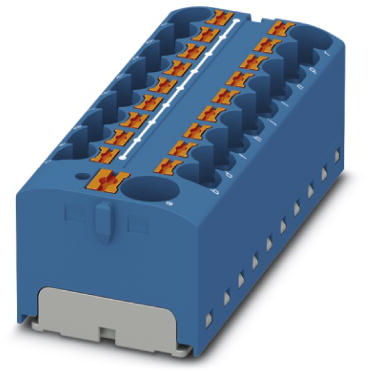

Distribution block, push-in connection, 0.2-6.0 mm², 19 pole, 32 A, 6 kV, blue, 3273902
Unit Price (€ / pc.)
15.8865 € *
Available: 0 pcs.
Available in 10 days: 90 pcs.
Leadtime: 1 Week **
Total Price:
15.89 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8865 €
10 pcs.
14.3038 €
100 pcs.
12.1618 €
*incl. VAT plus shipping costs
**Subject to prior sale
Distribution block, 3273902, Phoenix Contact
Distribution block, rated voltage: 450 V, nominal current: 32 A, connection method: Push-in connection, Load contact, cross section: 0.2 mm² - 6 mm², Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm² - 10 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: blue.
Features
- Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
- Clear wiring, thanks to eleven different color variants
- Time savings of up to 80%, thanks to ready-to-mount blocks without manual bridging
- Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
- Space savings of up to 50% on the DIN rail, thanks to transverse mounting
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Verteilerblock | |
| AWG-Leiterquerschnitt | AWG 24 bis 10 | |
| Bemessungsspannung | 450 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 64.75 mm | |
| Farbe | blau | |
| Höhe | 21.7 mm | |
| Länge | 28.6 mm | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 19-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
