3273992 | Phoenix Contact

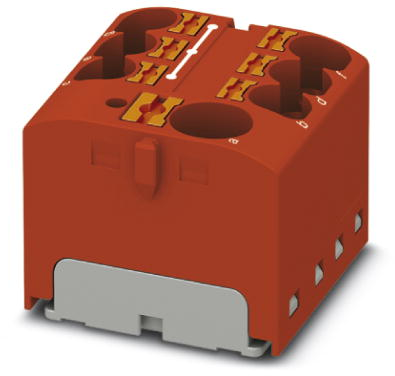

Distribution block, push-in connection, 0.2-6.0 mm², 32 A, 6 kV, red, 3273992
Unit Price (€ / pc.)
8.1158 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
8.12 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1158 €
10 pcs.
7.3066 €
100 pcs.
6.1999 €
*incl. VAT plus shipping costs
**Subject to prior sale
Distribution block, 3273992, Phoenix Contact
Distribution block, bridged internally, rated voltage: 450 V, nominal current: 32 A, connection method: Push-in connection, Load contact, cross section: 0.2 mm² - 6 mm², Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm² - 10 mm², mounting type: adhesive, color: red.
Technical specifications
| Connection | push-in connection | |
| Version | distribution block | |
| AWG cross-section | AWG 24 to 10 | |
| Rated Voltage | 450 V | |
| Rated surge voltage | 6 kV | |
| Width | 27.9 mm | |
| Colour | red | |
| Height | 22.7 mm | |
| Length | 28.6 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated current | 32 A | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
