443078 | Phoenix Contact
Protective conductor terminal, screw connection, 16-50 mm², 1 pole, 8 kV, yellow/green, 443078
Abgekündigt
Unit Price (€ / pc.)
35.0931 € *
Available: 7 pcs.
Leadtime: On Request **

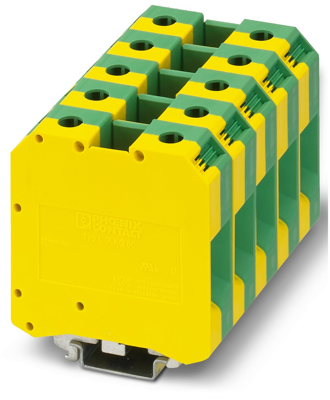

Ground modular terminal block, 443078, Phoenix Contact
Ground modular terminal block, with Allen screws, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 50 mm², cross section: 16 mm² - 50 mm², mounting: PE foot with mounting screw, M6, mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow.
Technical specifications
Anschluss | Schraubanschluss | |
Anzahl der Klemmstellen | 2 | |
Ausführung | Schutzleiter-Reihenklemme | |
AWG-Leiterquerschnitt | AWG 6 bis 1/0 | |
Bemessungsstoßspannung | 8 kV | |
Breite | 20 mm | |
Farbe | gelb/grün | |
Höhe | 81 mm | |
Länge | 70.5 mm | |
Leiterquerschnitt | 16-50 mm² | |
Polzahl | 1-polig | |
Verschmutzungsgrad | 3 |
Download
Logistics
Ursprungsland | PL |
Zolltarifnummer | 85369010 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | No |
Substanz Beschreibung | 4-Nonylphenol, verzweigt und linear, ethoxyliert |
