5036037 | Phoenix Contact
Protective conductor terminal, screw connection, 0.2-4.0 mm², 6 kV, yellow/green, 5036037
Unit Price (€ / pc.)
12.6259 € *
Available: 0 pcs.
Leadtime: 1 Week **

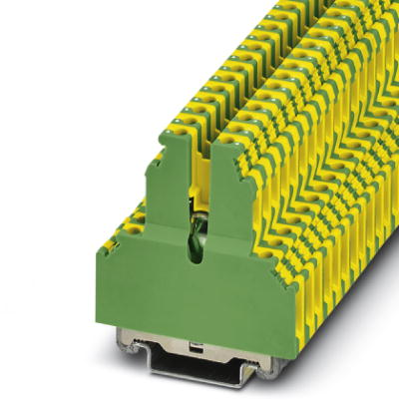

Ground modular terminal block, 5036037, Phoenix Contact
Ground modular terminal block, number of connections: 4, connection method: Screw connection, 1st and 2nd level, cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- Same shape and pitch as the feed-through terminal blocks
- Universal protective conductor foot for mounting on NS 35 or NS 32 DIN rails
- The offset levels offer unobstructed access to the lower connection level even when fully wired
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 12 | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 62 mm | |
| Länge | 56 mm | |
| Leiterquerschnitt | 0,2-4,0 mm² | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | TR |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | 4-Nonylphenol, verzweigt und linear, ethoxyliert |
