2308030 | Phoenix Contact

Universal current transducer, 2308030

Order No.: 64P5248
EAN: 4046356434058
MPN:
2308030
MCR-SL-CUC-200-I
Series: MCR

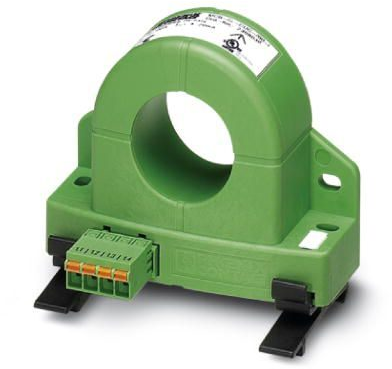

2308030 Phoenix Contact Signal Converters and Measuring Transducers Image 1
2308030 Phoenix Contact Signal Converters and Measuring Transducers Image 2
Image may differ
Unit Price (€ / pc.)
344.4931 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
344.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
344.4931 €

Universal current transducer, 2308030, Phoenix Contact

Universal current transducer, for measuring AC, DC, and distorted currents, 0 ... 200 A input current, 4 ... 20 mA output

Features

  • Variable mounting on DIN rail and mounting plate
  • Simple connection technology thanks to COMBICON plug-in connection terminal blocks
  • Compact dimensions also enable distributed use
  • Universal current measurement, no shunt required
  • 3-way isolation
Technical specifications
Version zur Messung von Gleich-/Wechsel-/verzerrten Strömen

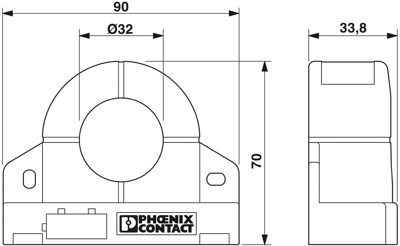

Width 90 mm
Weight 293.6 g
Height 33.8 mm
Length 85 mm
measurement range Eingang 0-200 A, Ausgang 4-20 mA
Product type Universalstrommessumformer
Logistics
Country of origin CN
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
