2961749 | Phoenix Contact
Solid state relay, 9.6-14.4 VDC, 5-30 VDC, 10 A, DIN rail, 2961749
Unit Price (€ / pc.)
75.7673 € *
Available: 0 pcs.
Available in 10 days: 50 pcs.
Leadtime: 1 Week **

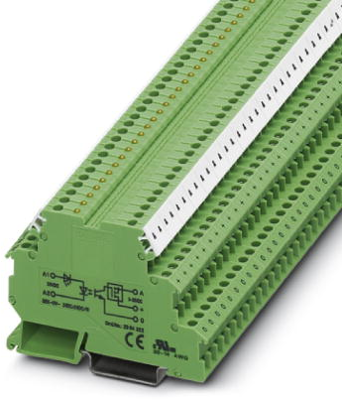

Solid-state relay, 2961749, Phoenix Contact
Power solid-state relay terminal block, Input: DC voltage, Output: DC voltage, Input voltage: 12 V DC
Features
- Labeling and mounting with user-friendly modular terminal blocks
- Wear-free switching of up to 24 V DC/10 A or 240 V AC/800 mA
- Integrated output protective circuit
- Integrated input circuit
- Electrical isolation between input and output at up to 2.5 kVrms
- Status indicator
- Zero voltage switch at AC output
Technical specifications
| LED display | Yes | |
| Assembly | DIN rail | |
| Rated current | 10 A | |
| Voltage | 5-30 VDC | |
| Control Voltage | 9.6-14.4 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
