1212704 | Phoenix Contact

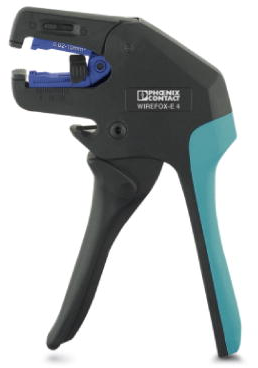

Stripping pliers for rubber and silicone insulations, 0.1-4.0 mm², AWG 28-12, cable-Ø 0.3-2.4 mm, L 191 mm, 136 g, 1212704
Unit Price (€ / pc.)
105.1484 € *
Available: 0 pcs.
Available in 10 days: 2 pcs.
Leadtime: 1 Week **
Stripping tool, 1212704, Phoenix Contact

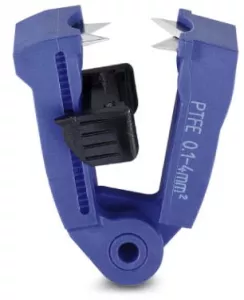

Stripping tool for cables and conductors (especially for rubber and silicone insulations) from 0.1-4 mm², Self-adjusting, Stripping length of up to 18 mm, Cutting capacity of up to 10 mm² stranded/1.5 mm² solid, Replaceable stripping blade.
Technical specifications
| Abisolierlänge | 18 mm | |
| Ausführung | Abisolierzange | |
| AWG-Leiterquerschnitt | AWG 28-12 | |
| Geeignet für | Gummi- und Silikon-Isolierungen | |
| Gewicht | 136 g | |
| Länge | 191 mm | |
| Leiterdurchmesser | 0,3-2,4 mm | |
| Leiterquerschnitt | 0,1-4,0 mm² | |
| VDE-/1000V-geprüft | No |
Download
Logistics
| Ursprungsland | SE |
| Zolltarifnummer | 82032000 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
