1081867 | Phoenix Contact

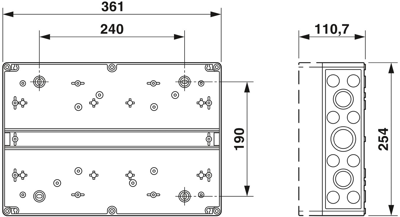

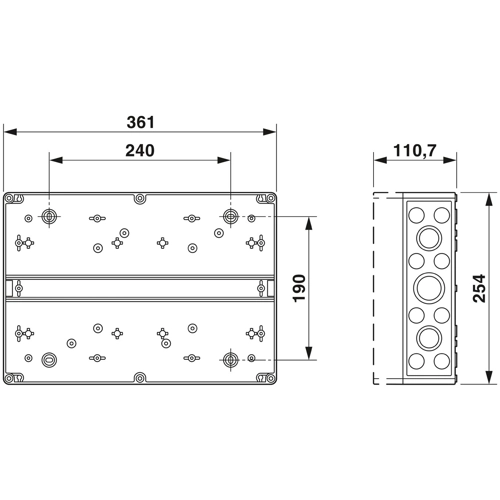

Switchgear combination, 1000 VDC for connection of 4x 2 strings, (H x W x D) 254 x 361 x 111 mm, IP65, PC, gray, 1081867
Unit Price (€ / pc.)
530.6567 € *
Available: 0 pcs.
Available in 10 days: 33 pcs.
Leadtime: 2 Weeks **

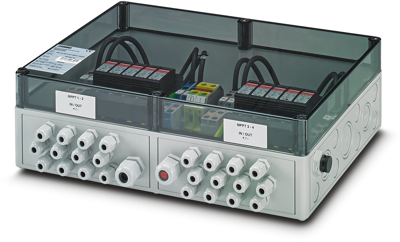

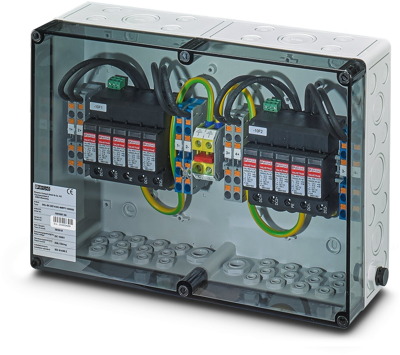

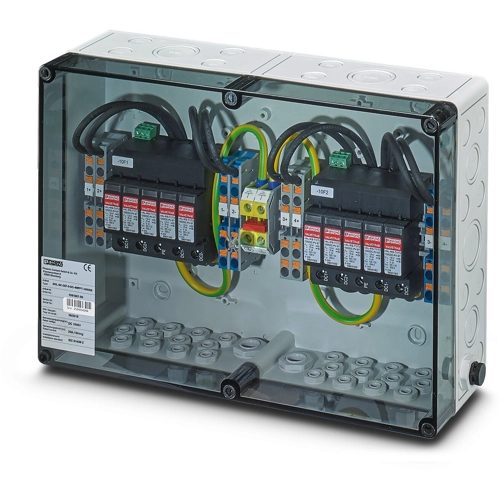

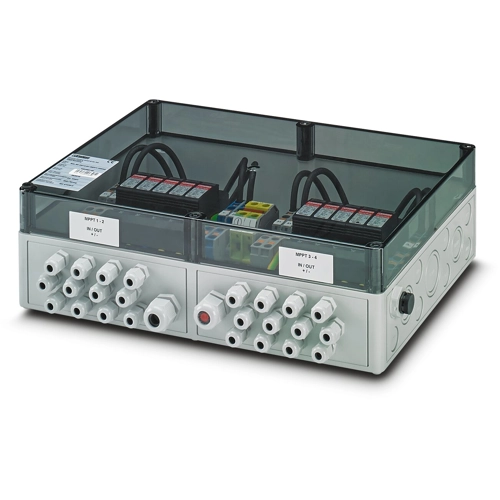

String combiner box, 1081867, Phoenix Contact
String combiner box for photovoltaic systems up to 1000 V DC for connecting 4x 2 strings. With surge protection (type 1/2) and cable glands for the input and output side.
Features
- Fast installation and startup
- Standard-compliant switchgear and controlgear assembly, thanks to use of DIN EN 61439
- Large portfolio of string combiner boxes in stock
- Application-oriented consultation
Technical specifications
| Version | switchgear combination, 1000 VDC for connection of 4x 2 strings | |
| Width | 361 mm | |
| Colour | gray | |
| Height | 254 mm | |
| Material | PC | |
| Degree of protection (IP) | IP65 | |
| Depth | 111 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85234910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
