2404298 | Phoenix Contact

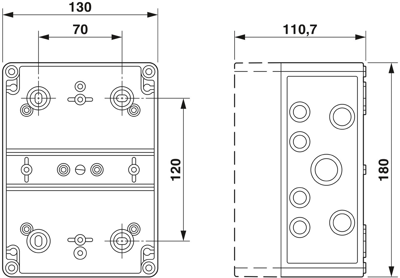

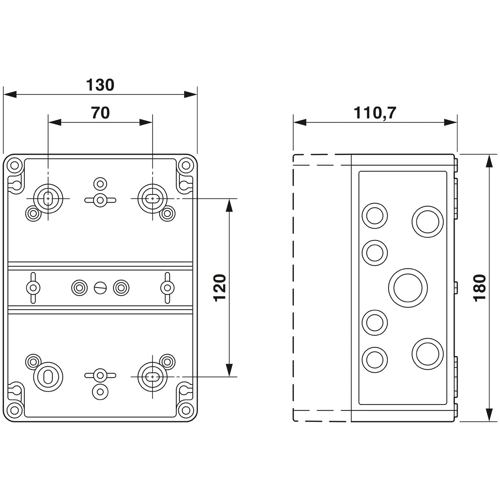

Switchgear combination, 1000 VDC to connect 1x 1 string, (H x W x D) 180 x 130 x 111 mm, IP65, PC, gray, 2404298
Unit Price (€ / pc.)
198.2064 € *
Available: 0 pcs.
Available in 10 days: 204 pcs.
Leadtime: 1 Week **

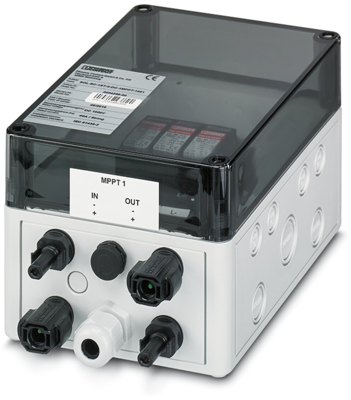

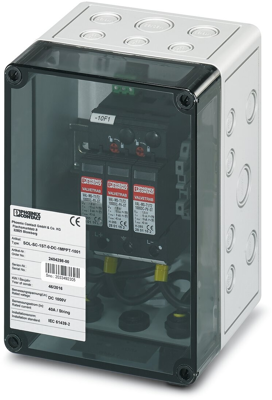

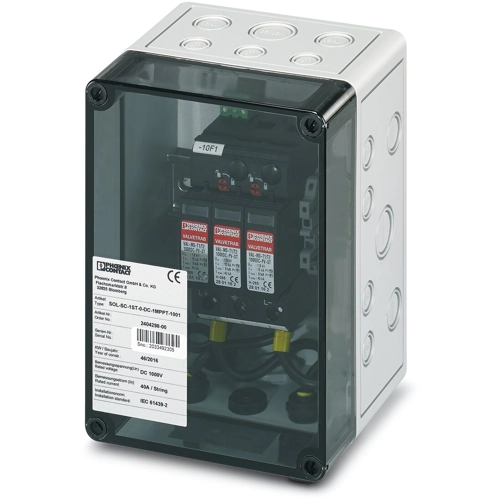

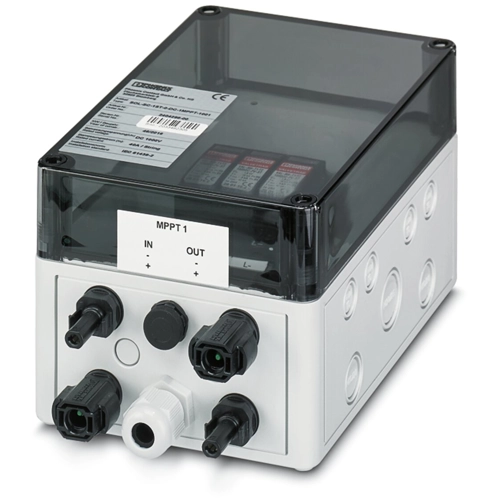

String combiner box, 2404298, Phoenix Contact
String combiner box for photovoltaic systems up to 1000 V DC for connecting 1x 1 string. With surge protection (type 1/2) and SUNCLIX DC connectors for the input and output side (SUNCLIX mating connectors supplied as standard).
Features
- Fast installation and startup
- Standard-compliant switchgear and controlgear assembly, thanks to use of DIN EN 61439
- Large portfolio of string combiner boxes in stock
- Application-oriented consultation
Technical specifications
| Ausführung | 1000 VDC zum Anschluss von 1x 1 String | |
| Breite | 130 mm | |
| Farbe | grau | |
| Höhe | 180 mm | |
| Material | PC | |
| Produkt-Art | Schaltgerätekombination | |
| Schutzart (IP) | IP65 | |
| Tiefe | 111 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85363030 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
