1705653 | Phoenix Contact
Feed through terminal, 1 pole, 1.5-16 mm², clamping points: 2, gray, push-in spring connection, 76 A, 1705653
Unit Price (€ / pc.)
5.0218 € *
Available: 0 pcs.
Available in 10 days: 1,433 pcs.
Leadtime: 1 Week **

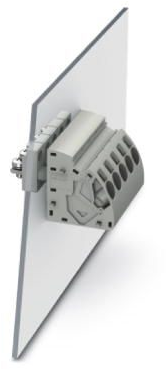

Terminal block, 1705653, Phoenix Contact

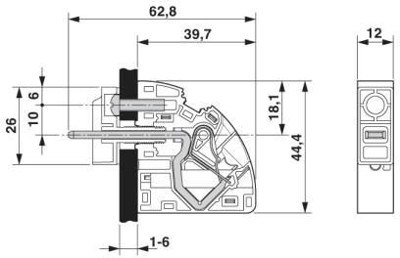

Panel feed-through terminal block, connection method: push-in spring connection, cable lug connection, number of positions: 1, load current: 76 A, cross section: 1.5 mm² - 16 mm², connection direction of the conductor to plug-in direction: 45 °, width: 12 mm.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Automatic panel thickness compensation enables universal use
- Reliable seal even with low-viscosity molding compounds
Technical specifications
| Connection | push-in spring connection | |
| Number of terminals | 2 | |
| Version | feed through terminal | |
| AWG cross-section | AWG 14-4 | |
| Colour | gray | |
| Cable cross-section | 1.5-16 mm² | |
| Rated current | 76 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
