1708749 | Phoenix Contact
Feed through terminal, 5 pole, 10-50 mm², clamping points: 10, gray, cable connection, 150 A, 1708749
Unit Price (€ / pc.)
61.1898 € *
Available: 0 pcs.
Leadtime: On Request **

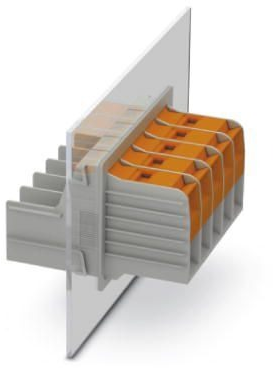

Terminal block, 1708749, Phoenix Contact

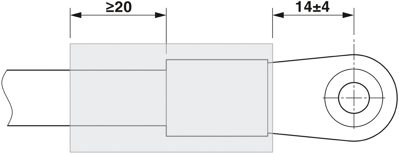

Panel feed-through terminal block, connection method: T-LOX knee lever connection, cable lug connection, number of positions: 5, load current: 150 A, cross section: 10 mm² - 50 mm², connection direction of the conductor to plug-in direction: 0 °, width: 118 mm.
Features
- Lever actuation enables time-saving and smooth connection of large conductors
- Defined contact force ensures that contact remains stable over the long term
- 90° open clamping space allows the conductor to be conveniently swiveled
- Quick, tool-free mounting on the housing wall using a fixing wedge
Technical specifications
| Version | Durchführungsklemme | |
| Pin number | 5-polig | |
| Cable cross-section | 10-50 mm² | |
| Number of terminals | 10 | |
| Colour | grau | |
| Connection | Kabelanschluss | |
| Rated current | 150 A | |
| AWG cross-section | AWG 8-1 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
