1713711 | Phoenix Contact
Feed through terminal, 1 pole, 10-50 mm², clamping points: 2, gray, screw connection, 150 A, 1713711
Unit Price (€ / pc.)
11.5668 € *
Available: 0 pcs.
Available in 10 days: 8 pcs.
Leadtime: 2 Weeks **
Total Price:
11.57 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5668 €
10 pcs.
10.6386 €
50 pcs.
9.6866 €
100 pcs.
8.7108 €
*incl. VAT plus shipping costs
**Subject to prior sale
Terminal block, 1713711, Phoenix Contact

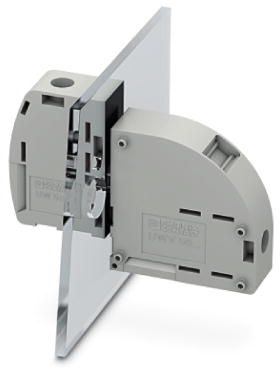

Panel feed-through terminal block, connection method: screw connection with tension sleeve, number of positions: 1, load current: 150 A, connection direction of the conductor to plug-in direction: - 90 °, width: 18.8 mm.
Features
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Tool-free snap-in principle enables easy mounting on the device panel
- Automatic panel thickness compensation enables universal use
Technical specifications
| Version | Durchführungsklemme | |
| Pin number | 1-polig | |
| Cable cross-section | 10-50 mm² | |
| Number of terminals | 2 | |
| Colour | grau | |
| Connection | Schraubanschluss | |
| Rated current | 150 A | |
| AWG cross-section | AWG 6-2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
