1713845 | Phoenix Contact
Feed through terminal, 1 pole, 10-50 mm², clamping points: 2, gray, screw connection, 150 A, 1713845
Unit Price (€ / pc.)
9.3177 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
9.32 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3177 €
10 pcs.
8.5799 €
50 pcs.
7.8064 €
100 pcs.
7.0210 €
*incl. VAT plus shipping costs
**Subject to prior sale

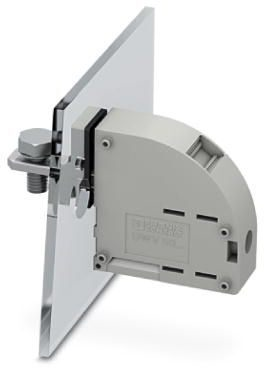

Terminal block, 1713845, Phoenix Contact
Panel feed-through terminal block, connection method: screw connection with tension sleeve, cable lug connection, number of positions: 1, load current: 150 A, connection direction of the conductor to plug-in direction: - 90 °, width: 18.8 mm.
Features
- Well-known connection principle allows worldwide use
- Low temperature rise, thanks to maximum contact force
- Tool-free snap-in principle enables easy mounting on the device panel
- Automatic panel thickness compensation enables universal use
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | feed through terminal | |
| AWG cross-section | AWG 6-2 | |
| Colour | gray | |
| Cable cross-section | 10-50 mm² | |
| Rated current | 150 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
