1821067 | Phoenix Contact

Feed through terminal, 3 pole, 0.2-6.0 mm², clamping points: 6, gray, push-in spring connection, 41 A, 1821067

Order No.: 60P2054
EAN: 4046356788199
MPN:
1821067
PLW 16-6/ 3-10
Series: PLW

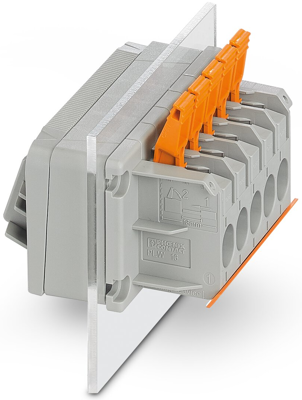

1821067 Phoenix Contact Terminal Blocks Image 1
1821067 Phoenix Contact Terminal Blocks Image 2
1821067 Phoenix Contact Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
14.1610 € *
Available: 0 pcs.
Available in 10 days: 31 pcs.
Leadtime: 1 Week **
Total Price:
14.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
14.1610 €

Terminal block, 1821067, Phoenix Contact

Panel feed-through terminal block, connection method: push-lock connection, push-in spring connection, number of positions: 3, load current: 41 A, cross section: 2.5 mm² - 10 mm², connection direction of the conductor to plug-in direction: 0 °, width: 54.4 mm.

Features

  • Tool-free lever principle enables time-saving connection and release of conductors with or without ferrules
  • Defined contact force ensures that contact remains stable over the long term
  • Time-saving push-in connection when lever is closed
Technical specifications
Anschluss Push-in-Federanschluss
Anzahl der Klemmstellen 6
Ausführung Durchführungsklemme
AWG-Leiterquerschnitt AWG 14-4
Farbe grau
Leiterquerschnitt 0,2-6,0 mm²
Nennstrom 41 A
Polzahl 3-polig
Logistics
Ursprungsland SK
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
