1821083 | Phoenix Contact
Feed through terminal, 5 pole, 2.5-10 mm², clamping points: 10, gray, push-in spring connection, 41 A, 1821083
Unit Price (€ / pc.)
28.2863 € *
Available: 11 pcs.
Leadtime: 6 Weeks **
Total Price:
28.29 € *
Price list
Quantity
Price per unit*
1 pcs.
28.2863 €
10 pcs.
26.3109 €
25 pcs.
24.2046 €
50 pcs.
22.0269 €
*incl. VAT plus shipping costs
**Subject to prior sale

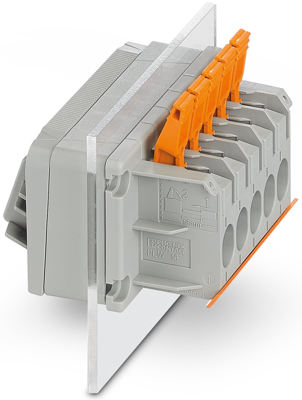

Terminal block, 1821083, Phoenix Contact
Panel feed-through terminal block, connection method: push-lock connection, push-in spring connection, number of positions: 5, load current: 41 A, cross section: 2.5 mm² - 10 mm², connection direction of the conductor to plug-in direction: 0 °, width: 74.4 mm.
Features
- Tool-free lever principle enables time-saving connection and release of conductors with or without ferrules
- Defined contact force ensures that contact remains stable over the long term
- Time-saving push-in connection when lever is closed
Technical specifications
| Connection | push-in spring connection | |
| Number of terminals | 10 | |
| Version | feed through terminal | |
| AWG cross-section | AWG 14-4 | |
| Colour | gray | |
| Cable cross-section | 2.5-10 mm² | |
| Rated current | 41 A | |
| Pin number | 5 pole |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
