3056912 | Phoenix Contact

Feed through terminal, 1 pole, 0.2-4.0 mm², clamping points: 2, gray, push-in spring connection, 18 A, 3056912

Order No.: 60P3865
EAN: 4046356485487
MPN:
3056912
PWO 4-POT-SCM
Series: PWO

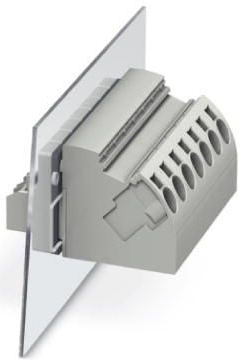

3056912 Phoenix Contact Terminal Blocks Image 1
3056912 Phoenix Contact Terminal Blocks Image 2
3056912 Phoenix Contact Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
1.7017 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
10 pcs.
1.5708 €
50 pcs.
1.4280 €
100 pcs.
1.2852 €
*incl. VAT plus shipping costs
**Subject to prior sale

Terminal block, 3056912, Phoenix Contact

Panel feed-through terminal block, connection method: push-in spring connection, spade connection, number of positions: 1, load current: 18 A, cross section: 0.2 mm² - 4 mm², connection direction of the conductor to plug-in direction: 45 °, width: 8.1 mm.

Features

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Automatic panel thickness compensation enables universal use
  • Tool-free snap-in principle enables easy mounting on the device panel
Technical specifications
Anschluss Push-in-Federanschluss
Anzahl der Klemmstellen 2
Ausführung Durchführungsklemme
AWG-Leiterquerschnitt AWG 24-12
Farbe grau
Leiterquerschnitt 0,2-4,0 mm²
Nennstrom 18 A
Polzahl 1-polig
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
